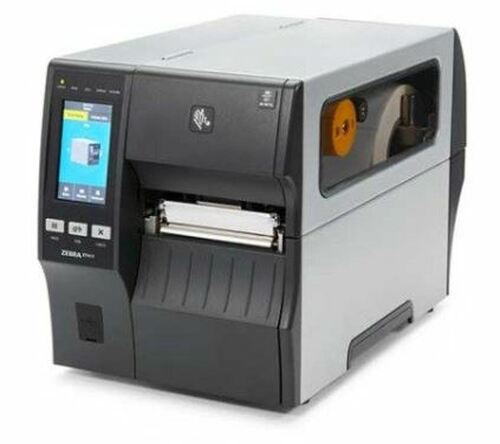

The Zebra ZT411 On-Metal RFID Printer is ideally suited for on-demand RFID asset tagging for all surfaces, including metal. The Zebra ZT411 delivers advancements in print speed, connectivity options, and management/support tools. Constructed with an all-metal frame and bi-fold door, the ZT411 is designed to easily fit in space-constrained environments. This printer features a 4.3-inch full-color touch display to see status at a glance and make quick settings changes—including RFID. As the only dedicated option for printing and encoding thicker RFID labels for metal assets, the ZT411 On-metal printer is manufactured with an adjustable sensor assembly to support both standard media as well as the increased thickness of Silverline labels.


RFID Features:

    • Prints and encodes labels with a minimum pitch of 16 mm (0/6 in).
    • Supports labels compatible with UHF EPC Gen 2 V2 (ISO 18000-6C).
    • Compliant with Global RFID radio to support multinational deployments.
    • Automatically eliminates complex RFID placement guidelines with adaptive encoding technology.
    • Variable inlay placement supports a range of inlay positions for maximum media flexibility.
    • Track performance with RFID job-monitoring tools.
    • Supports industry standard multi-vendor chip-based serialization (MCS).
    • Supports block permalocking of user memory compatible with ATA Spec 2000.
    • Integrated ThingMagic RFID reader/encoder.


Standard Features:

  • Print Methods: Thermal transfer and direct thermal.
  • Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window.
  • Side-loading supplies path for simplified media and ribbon loading.
  • Element Energy Equalizer™ (E3™) for superior print quality.
  • Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host.
  • Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation.
  • Bi-colored status LEDs for quick printer status.
  • ENERGY STAR® qualified.


Product Details


Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (865-928 MHz)
Data Interface: USB 2.0, RS-232, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
Power Source: Power Supply: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz, rated at 100 Watts




Resolution: 203 dpi or 300 dpi
Max Outer Diameter: 203 mm (8 in)
ID Core Options: 76 mm (3 in)
Dimensions: 269 x 324 x 495 mm (10.6 x 12.75 x 19.50 in)
Weight: 18 kg (40 lbs)




Operating Temperature: +5° to +40°C (+41° to +104°F)




Host API: ZBI 2.0, ZPL, ZPL II, EPL, EPL2 (Note: EPL available on 203 dpi models only)
