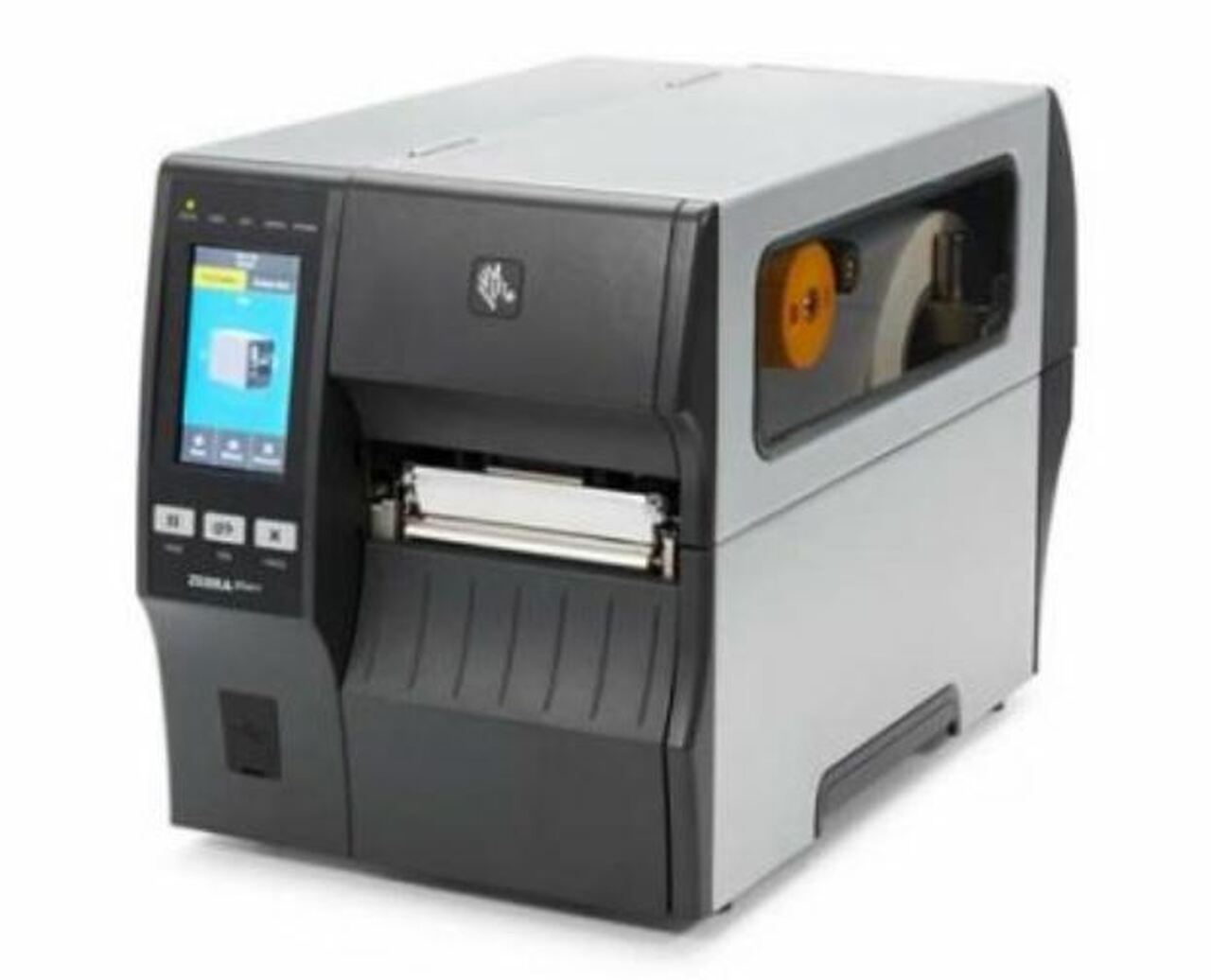

ZEBRA ZT411R RFID NON METAL PRINTER

ZEBRA ZT411R RFID NON METAL PRINTER

The ZT411 RFID Printer offers a cost-effective option for rugged, industrial printing needs. Constructed with an all-metal frame and bi-fold door, the ZT411 is designed to easily fit in space-constrained environments. The Zebra ZT411 RFID Printer delivers advancements in print speed, connectivity options, and management/support tools. Equipped with RFID capabilities, the ZT411 supports tags compatible with UHF EPC Gen2 V2 (ISO 18000-63). This printer is easy to integrate and manage with Zebra’s Print DNA suite of applications, utilities, and developer tools—all powered by Link-OS®. Available in two print resolutions, the ZT411 addresses a broad array of applications throughout manufacturing, transportation, logistics, retail, and more.

Description

  • Fully integrated ThingMagic UHF EPC Gen 2 V2 (ISO 18000-63) RFID Reader/Encoder.
  • Prints and encodes tags with a minimum pitch of 16 mm (0.6 in).
  • Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RFID protocols.
  • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines.
  • Large 4.3-inch color touch display with intuitive menu for quick operation and settings management.
  • Thermal transfer and direct thermal printing.
  • Easy, side-loading metal print mechanism.
  • Resident ZPL, ZPL II, and EPL programming languages, selectable through software or front panel.
  • XML-Enabled Printing which allows XML communications for barcode label printing.
  • Thin film printhead with E3″ Element Energy Equalizer for superior print quality.
  • Comes standard with Ethernet, Serial, USB, dual USB Host, and Bluetooth 4.1 connectivity.
  • Two open media slots to accommodate additional communication options.
  • Powered by Link-OS.
  • Ideally suited for manufacturing, transportation, logistics, retail, and healthcare applications.

Product Details

ELECTRICAL:



Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 V2 (ISO 18000-63)
Operating Frequency: Global (865-928 MHz)
Data Interface: USB 2.0, RS-232, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
Power Source: Power Supply: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz, rated at 100 Watts



MECHANICAL:



Resolution: 203 dpi or 300 dpi
Max Outer Diameter: 203 mm (8 in)
ID Core Options: 76 mm (3 in)
Dimensions: 495 x 269 x 324 mm (19.5 x 10.6 x 12.75 in)
Weight: 16.33 kg (36 lbs)



ENVIRONMENT:



Operating Temperature: +5° to +40°C (+41° to +104°F)



APPLICATION INTERFACE:



Host API: ZBI 2.0, ZPL, ZPL II, EPL, EPL2 (Note: EPL available on 203 dpi models only)
