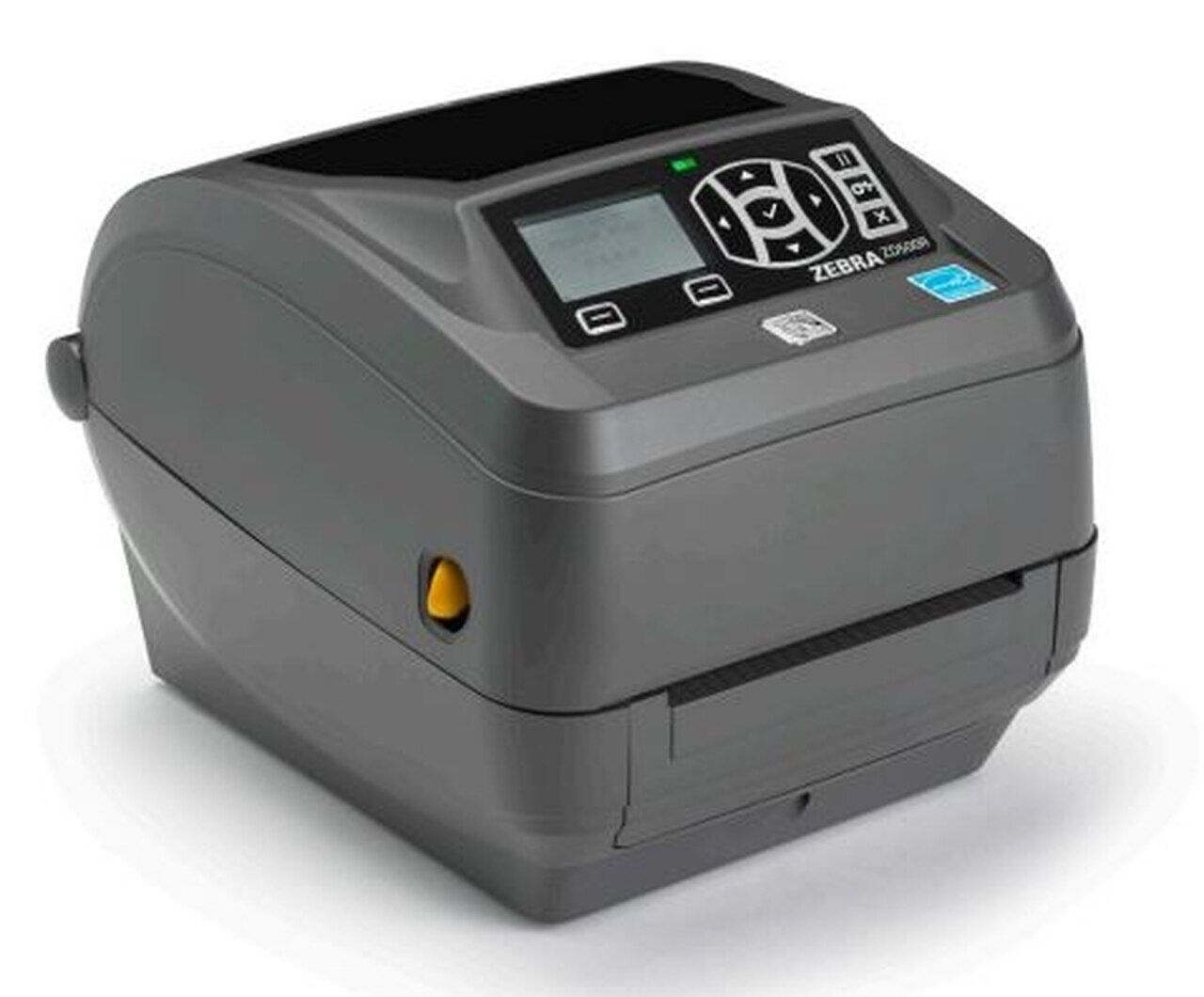

ZEBRA ZD500R DESKTOP RFID PRINTER

ZEBRA ZD500R DESKTOP RFID PRINTER

The ZD500R extends Zebra’s broad range of RFID printers by adding UHF RFID printing and encoding to Zebra’s line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging. The printer supports both direct thermal and thermal transfer printing and is compatible with inlays from all leading suppliers. The ZD500R can be used with a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. By encoding RFID inlays that are spaced closer together, the ZD500R enables lower media costs, less media waste and fewer roll changes. The printer can handle the most demanding applications with standard features that include Parallel, Serial, USB and Ethernet connectivity; large memory; and Zebra programming language. Options include cutter and peeler, Bluetooth® and Wi-Fi®-certified communications, and high-resolution printing. The ZD500R leverages Zebra’s new Link-OS™ environment—Zebra’s innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location. Featuring the Link-OS Cloud Connect application, the ZD500R can connect to the Cloud directly and securely, forwarding data from any port. The Link-OS Print Touch™ app allows users to pair the ZD500R to NFC-enabled devices with a simple tap, giving them immediate access to the data they need, including Zebra how-to videos and product support.

Description

  • Thermal transfer or Direct Thermal print methods.
  • ZPL programming language.
  • Dual-wall frame construction.
  • Tool-less printhead and platen replacement.
  • OpenACCESS for easy media loading.
  • Quick and easy ribbon loading.
  • Simplified calibration of media.
  • Connectivity: USB, Parallel, Serial, Ethernet, and WiFi.
  • Real time clock.
  • LCD User Interface.
  • ENERGY STAR® qualified.
  • Link-OS-enabled.
  • Print Touch app.
  • 3″ core adapter.

Product Details

ELECTRICAL:

Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (860-960 MHz)
Data Interface: USB, Serial, Parallel, Ethernet, WiFi
Power Source: Power Supply 100-240 VAV, 50-60 Hz



MECHANICAL:



Resolution: 203 dpi or 300 dpi
Max Outer Diameter: 127 mm (5 in)
ID Core Options: 12.7 mm (0.5 in), 25 mm (1.0 in), 35 mm (1.375 in), 37.1 mm (1.5 in), 76 mm (3 in)
Dimensions:193 x  191 x 254 mm (7.6 x 7.5 x 10 in)
Weight: 2.1 kg (4.6 lbs)



ENVIRONMENT:



Operating Temperature: 4.4° to +41°C (39.92° to +105.8°F)



APPLICATION INTERFACE:



Host API: ZPL
