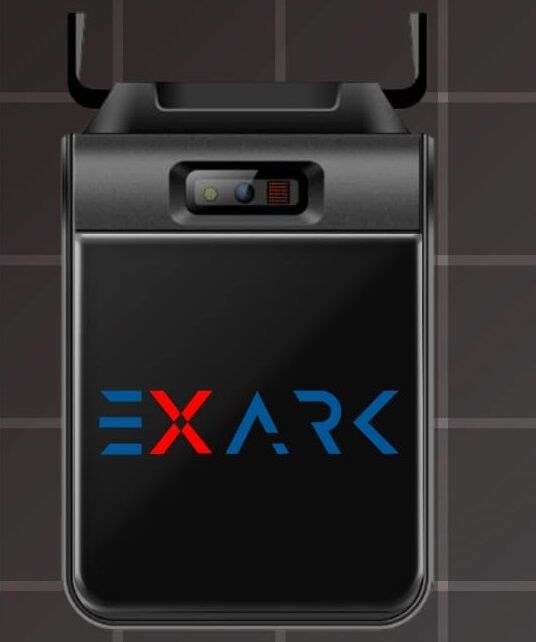

EXARK XK – 570

EXARK XK – 570

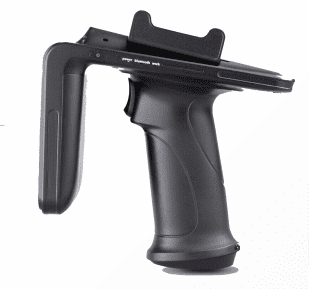

The EXARK XK-570 is a robust, simple to use UHF passive RFID Sled Reader designed for all day intensive use. This device features powerful UHF reading and writing, and barcode scanning with high sensitivity, can attach mobile phone to this UHF Sled Reader for a complete one-piece solution. The device can be widely deployed in Retail, warehouse management, vehicle management, financial management and so forth.

Description

  • Supports Apple iOS® and Google Android®
  • ETSI 6–867.6 MHz or FCC/IC 902–928 MHz
  • 2D imager supporting all major 1D / 2D barcodes
  • Bluetooth Low Energy communications to Smart Device
  • Fast RFID tag capture in various environments
  • High performance battery for full shift operation

Product Details

ELECTRICAL:



Standards: ISO 18000-63 (EPC Class 1 Gen2v2) AES authentication in accordance with ISO/IEC 29167-10 supported
Frequency: ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz
RF Power: ERP 2W/EIRP 3.3W
Long battery life: 5200 mAh Low power electronics Up to 70 hours of intensive use
Power: Battery specification: 5200mAh,Standby: over 70 hours ,Continuous use: up to 6 hours (UHF reading)



MECHANICAL:



Antenna features: Software controlled antenna modes : ircular and proximity Nominal reading distance: circular polarization mode 10m/13 ft, proximity mode, read range down to 1 cm/0.4 inch
Dimensions: 143.5x77x134mm / 5.62×3.00×5.27in
Weight: 465g/16.40oz (with battery)
Interfaces: Micro-USB
Antenna parameter: Circular Polarized Antenna (3dBic)



ENVIRONMENT:



Operating Temp.: -4 F to 122F / -20 C to 50 C
Storage Temp.: -40 F to 158 F / -40 C to 70 C
Humidity: 5%RH – 95%RH non condensing



APPLICATION INTERFACE:



Host API: LLRP API or REST API
