Description
Features and Specifications
Features
- Non-Transferable Label developed to assist in preventing transfer.
- Tamper-Resistant Design developed to provide increased tamper resistance.
- Security Features providing support for several security features.
- UHF RFID Technology using EPCglobal Gen2v2 standard.
- NXP UCODE DNA™ IC technology.
- Quick Verification to assist in fast and secure vehicle identification.
- Extended Read Range up to 10 m in ETSI and up to 8 m in FCC conditions.
- Windshield Compatibility design for windshield application.
- Protection from Duplication providing increased protection from duplication.
- Built to operate under normal environmental and windshield conditions.
Functions
- Identification of a Vehicle
- Vehicle Authentication
- Authentication Using RFID Technology
- Detection of Any Tampering
- Secure Vehicle Tagging
- Long Range RFID Tag Reading
- Non-transferable Identification of a Vehicle
- Data Encoding Personalization
- Combination of Barcodes with Serial Number
Electrical Specifications
- Device Type: UHF RFID EPCglobal Gen2v2
- Type of IC: NXP UCODE DNA™
- Memory Capacity: EPC: Up to 224 bits
- User Memory: 3072 bits
TID: 96 bits - Reading Range (2W ERP)
- ETSI: Up to 10 m / 32 ft
- FCC: Up to 8 m / 26 ft
- Surface Material: Glass
Personalization Features
The EX-WSC107-DNA is capable of being customized to meet varying vehicle identification requirements.
- Pre-encoded EPC/user memory customer specific.
- EPC/User memory locking by a password.
- Custom printing: Custom static graphics can be added in layout design.
- Laser marking: Customization of variable information is possible.
- Variable information: It supports bar codes, readable data and serial numbers.
Mechanical Specification
- Product Number: EX-WSC107-DNA. Product Number, EX-WSC107-DNA has been observed.
- Product Name: EXARK WINDSHIELD CRYPTO. Product Name, EXARK WINDSHIELD CRYPTO is highlighted.
- Size of Tag: 100 x 40 mm.
- Weight: 1 g.
- Front Side: Inkjet and thermal. The front side supports both inkjet and thermal printing.
- Back Side: Aluminum antenna, with acrylic adhesive. The back side features an aluminum antenna bonded with acrylic adhesive.
- Applicable Surface: Glass. This tag is meant for glass surfaces.
- Minimum Bending Diameter: 50 mm. The smallest bending radius is fifty millimeters.
Environmental Resistance
Exark Windshield Crypto is specially designed for operating environment and windshield application.
- Operation Temperature Range: _35°C to +85°C
- Chemical Resistance:
- 168 hours salt water exposure at 10% salinity
- 24 hours NaOH exposure at 10%, pH 13
- 68 hours motor oil exposure
- 168 hours sulfuric acid exposure at 10%, pH 2.
Secure Vehicle Identification
Exark Windshield Crypto is made for situations that need vehicle identification and security.Exark Windshield Crypto has a non- tamper-proof build that stops the RFID label from being moved or copied without permission.

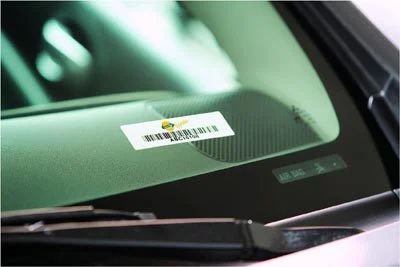

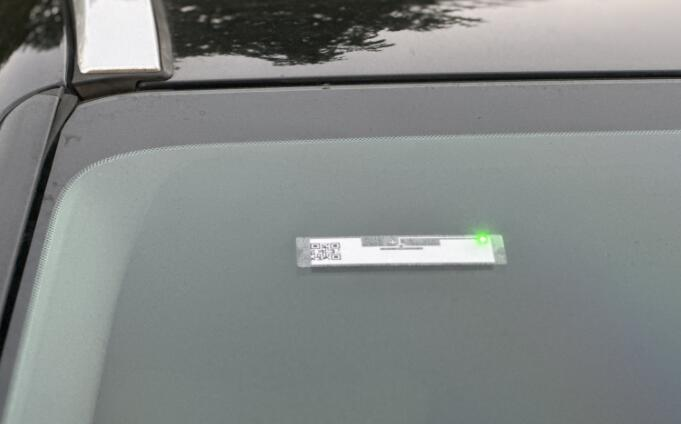

Because EXARK WINDSHIELD CRYPTO works with NXP UCODE DNA™, EPCglobal Gen2v2 and long-range UHF RFID the RFID label can be read from a distance. Does not need to be looked at directly. EXARK WINDSHIELD CRYPTO can be put on vehicle glass so that the RFID label is ready, for identification and authentication tasks.
