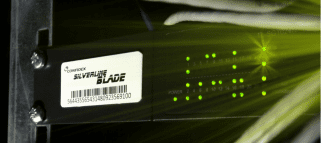

Confidex Silverline Blade™

With footprint of only 2.5 x 6 cm and thickness of 1.2 mm, the Confidex Silverline Blade™ is small and unobtrusive passive RFID label. Despite the small size, the Blade boasts a respectable 4.5 meter read range on metal. Equipped with an innovative antenna design, the Silverline Blade™ handles the complete global RFID radio frequency range of 865 to 928 MHz – without harming the performance. The Silverline Blade™ is easy to print and program on-demand making it an ideal solution for tagging your assets from servers to refrigerators.

Click here to download the Datasheet

Description
Product Details

Description

IP 68 rated.
Optimized for asset tagging.
Printable, metal-mount label tag.
Can be applied on a curved surface.
Tolerates industrial washing with standard solvents.
Worldwide operation in the RFID UHF bands (865-928 MHz).

Product Details

ELECTRICAL:

Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)

Operating Frequency: Global (865-928 MHz)

IC Type: Impinj Monza R6

Memory: EPC 96 bits, TID 48 bits

EPC Memory Content: Unique number encoded as a default

Max Read Distance – On Metal: Up to 4.5 m (15 ft)

Max Read Distance – On Plastic: Up to 1.5 m (5 ft)

Max Read Distance – On Liquid Containers: Up to 3 m (10 ft)

Applicable Surface Materials: All surfaces, optimized for metal

MECHANICAL:

Tag Form Factor: Hard label tag

Tag Materials: White specially coated PP

Recommended Ribbon: Full resin

Recommended Printer: Zebra ZT410 Silverline

Attachment Method: High tack adhesive

Dimensions: 60 x 25 x 1.2 mm (2.36 x 0.98 x 0.047 in)

Weight: 0.6 g

ENVIRONMENT:

Operating Temperature: -35° to +85°C (-31° to +185°F)
